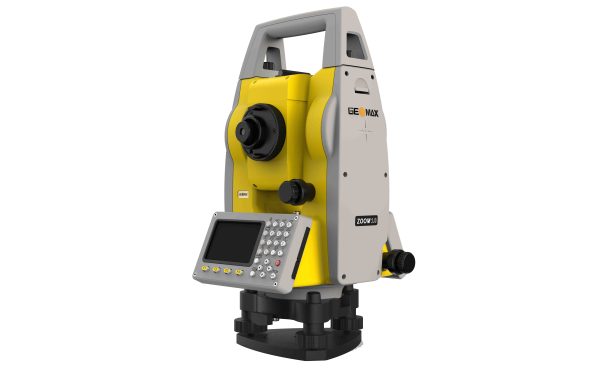

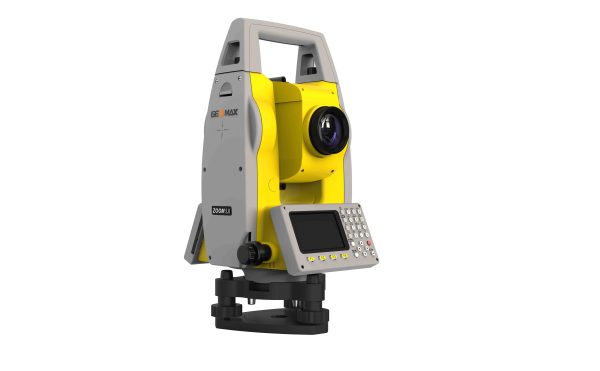

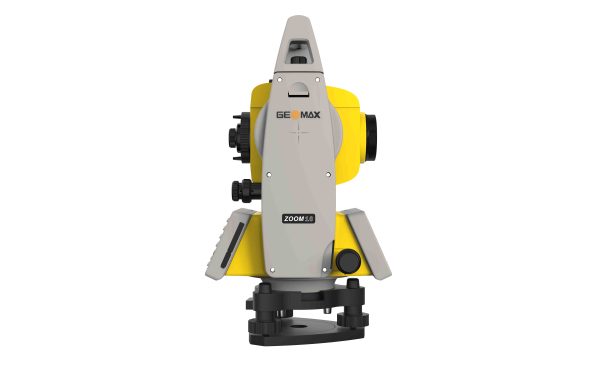

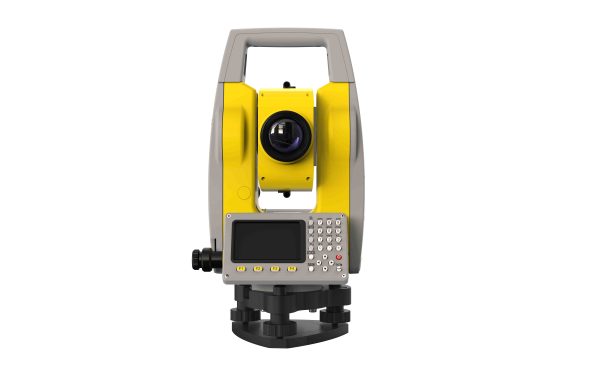

Zoom10

Next product
Zoom40 5,250.005,950.00 ex. VAT

4,100.00 ex. VAT

In Stock
Highlights:

Best performance and value ratio
The Zoom10 has been created following
your field work requirements.
You want to get familiar with a user
friendly and cost effective manual total
station? The Zoom10 is made for you.

Category:
Description

Best performance and value ratio The Zoom10 has been created following your field work requirements. You want to get familiar with a user friendly and cost effective manual total station? The Zoom10 is made for you. To make your job easier, intuitive onboard software runs on two built-in displays. It ensures quick and accurate reflectorless measurement up to a range of 350 m and angular accuracy of 2”. In combination with X-PAD software, the Zoom10 seamlessly integrates with your workflow to combine and process data from every sensor into one platform.

Zoom10

SPECIFICATION

  • Accuracy
  • 2”

  • Display resolution
  • 1”, 5”, 10”

  • Method
  • Absolute encoding

  • Compensation
  • Dual axis

TELESCOPE

  • Type
  • -

  • Magnification
  • 30x

  • NavLight™ Range
  • -

  • NavLight™ Accuracy
  • -

DISTANCE MEASUREMENTS - PRISM

  • Range
  • 3000 m

  • Accuracy
  • 3 mm + 2 ppm

  • Typ. time (fast/standard)
  • 1 / 1.5 sec

DISTANCE MEASUREMENTS - NON-PRISM

  • Range
  • 350 m

  • Accuracy
  • 3 mm + 2 ppm

  • Footprint
  • 8 x 20 mm @ 50 m

INTERFACE

  • Keyboard
  • Two full alphanumeric

  • Display
  • B&W, high res., 160 x 96 pixels with backlight, 6 lines

  • Date recording
  • Internal memory, 20,000 points

  • Bluetooth
  • yes

  • Removable memory
  • SD card

  • Ports
  • Serial, USB mini

SOFTWARE

  • Operating System
  • Embedded CE

  • Open for 3rd party SW
  • Open to X-PAD Ultimate GO

  • Basic package
  • -

  • Advanced package
  • -

PHYSICAL SPECIFICATIONS

  • Weight
  • Approx. 5.5 kg with battery & tribrach

  • Operating temperature
  • -20 °C to 50 °C

  • Protection class
  • IP54

POWER SUPPLY

  • Type/Operating time
  • Removable, 10 hours

PLUMMET

  • Type
  • Laser point, adjustable brightness
