The Zoom95 is the true flagship of the GeoMax TPS portfolio. Featuring advanced STReAM360 technology, this one-person total station substantially minimizes the time of any survey task and maximizes your performance and accuracy. Combined with the X-PAD field software, the user-friendly and flexible solution makes it easy to start digitizing your construction site.

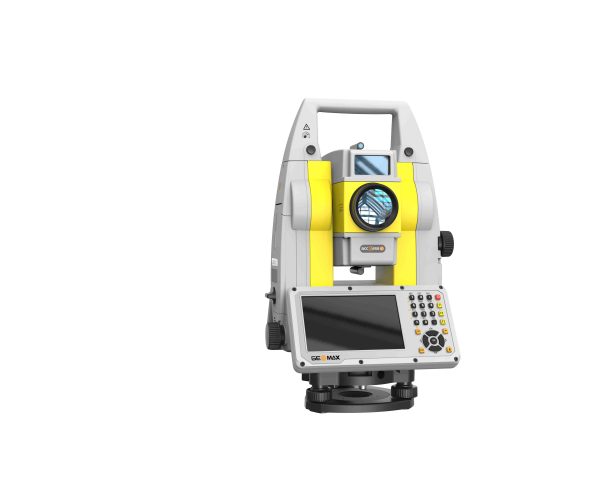

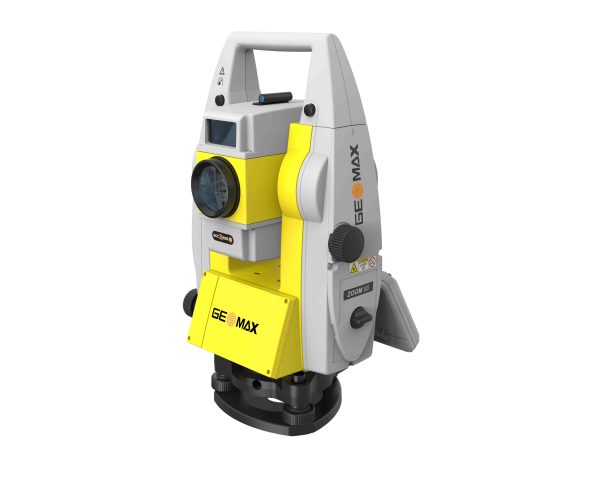

Zoom95
SPECIFICATION
- Accuracy
1”, 2”, 3”, 5”
- Display resolution
0.1”
- Method
Absolute, continuous, diametrical
- Compensation
Quadruple axis
TELESCOPE
- Type
accXXess
- Magnification
30x
- NavLight™ Range
5 m - 150 m
- NavLight™ Accuracy
5 cm at 100 m
DISTANCE MEASUREMENTS - PRISM
- Range
3500 m (std. prism) / 10,000 m
- Accuracy
1 mm + 1.5 ppm
- Typ. time (fast/standard)
0.8 / 2.4 sec
DISTANCE MEASUREMENTS - NON-PRISM
- Range
500 m / 1000 m
- Accuracy
2 mm + 2 ppm (< 500 m), 4 mm + 2 ppm (> 500 m)
- Footprint
8x 20 mm @ 50 m
INTERFACE
- Keyboard
Two full alphanumeric***
- Display
Color & Touch, 5” WVGA 800 x 480 pixel with LED backlight
- Date recording
Internal memory, 2 GB
- Bluetooth
internal & long-range Bluetooth handle
- Removable memory
SD card / USB stick
- Ports
Serial, USB, USB mini, external power, WLAN
SOFTWARE
- Operating System
Open Windows CE
- Open for 3rd party SW
yes
- Basic package
Fully flexible
- Advanced package
Fully flexible
PHYSICAL SPECIFICATIONS
- Weight
5.0 - 5.3 kg w/o battery and tribrach
- Operating temperature
-20 °C to 50 °C
- Protection class
IP55
POWER SUPPLY
- Type/Operating time
removable, up to 8 hours
PLUMMET
- Type
Laser point, adjustable brightness
MOTORIZATION
- Scout -360° Prism Search: Range
300 m at round prism
- AiM - Prism fine aiming: Range / Accuracy
1000 m at round prism / 1”
TRack -Prism following
- Range
800 m at round prism
- Max. speed
90 km/h at 100 m
