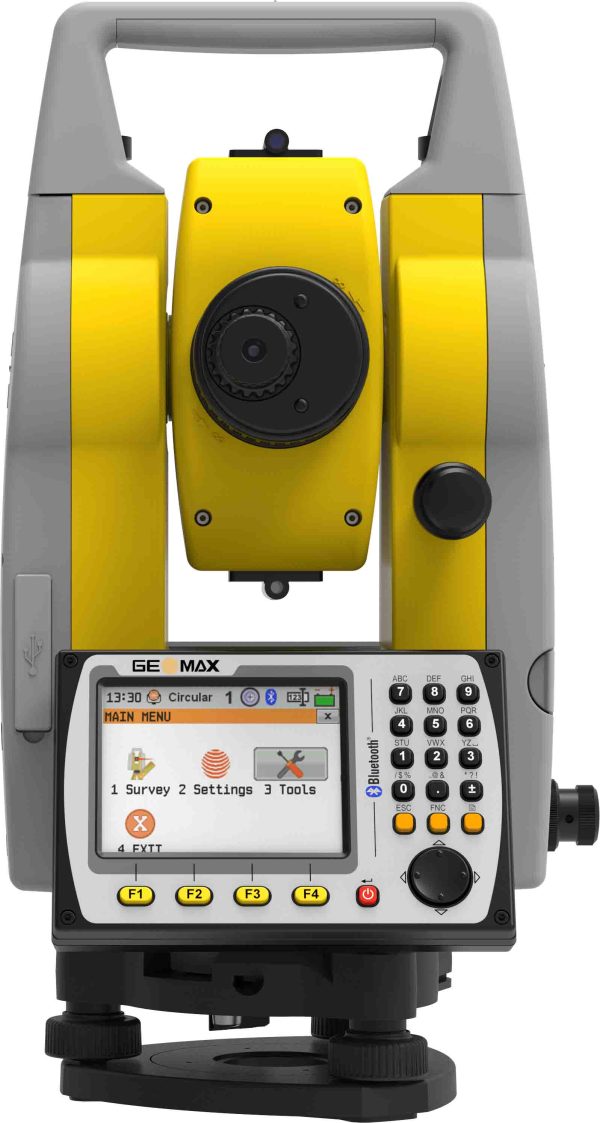

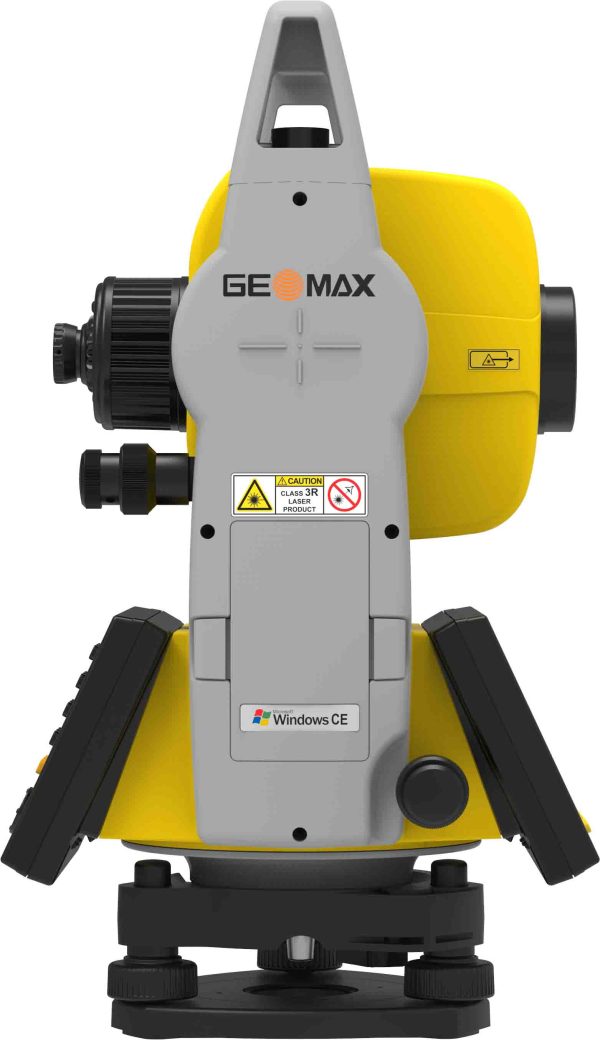

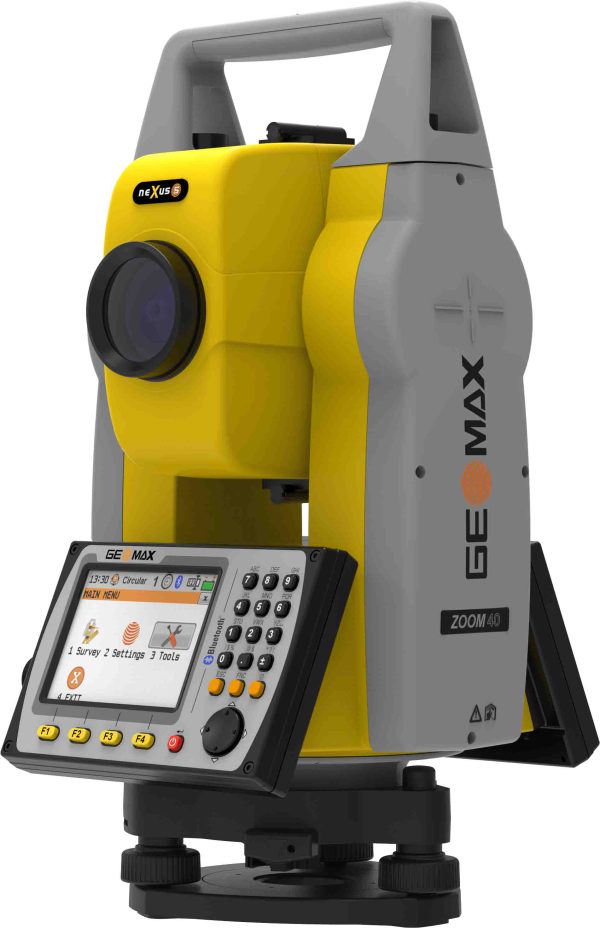

The Zoom40 manual total station, with its high resolution color and touch display, gives you the flexibility to run X-PAD, Field Genius, Carlson SurvCE, or any custom windows CE software. Combined with the capability to measure long distances with high accuracy, you can be sure: Zoom40 “works when you do”
Zoom40
SPECIFICATION
- Accuracy
2”, 5”
- Display resolution
1”
- Method
Absolute, continuous, diametrical
- Compensation
Quadruple axis
TELESCOPE
- Type
neXus
- Magnification
30x
- NavLight™ Range
-
- NavLight™ Accuracy
-
DISTANCE MEASUREMENTS - PRISM
- Range
3500 m (std. prism)
- Accuracy
2 mm + 2 ppm
- Typ. time (fast/standard)
2 / 2.4 sec
DISTANCE MEASUREMENTS - NON-PRISM
- Range
500 m
- Accuracy
2 mm + 2 ppm 2 mm
- Footprint
12 x 24 mm @ 50 m
INTERFACE
- Keyboard
Two full alphanumeric
- Display
Color & Touch, 3.5” Q-VGA 320 x 240 pixel with LED backlight, 10 lines
- Date recording
Internal memory, 2 GB
- Bluetooth
yes
- Removable memory
USB stick
- Ports
USB, USB mini
SOFTWARE
- Operating System
Open Windows CE
- Open for 3rd party SW
yes
- Basic package
Fully flexible
- Advanced package
Fully flexible
PHYSICAL SPECIFICATIONS
- Weight
5.3 kg w/o battery & tribrach
- Operating temperature
-20 °C to 50 °C
- Protection class
IP54
POWER SUPPLY
- Type/Operating time
Removable, 10 hours
PLUMMET
- Type
Laser point, adjustable brightness
