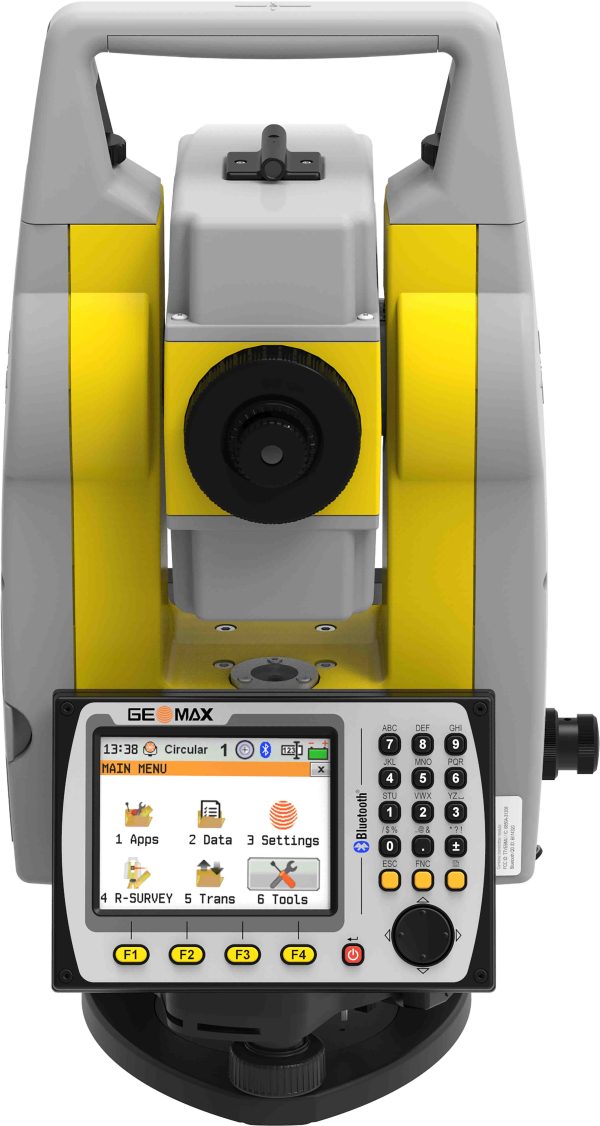

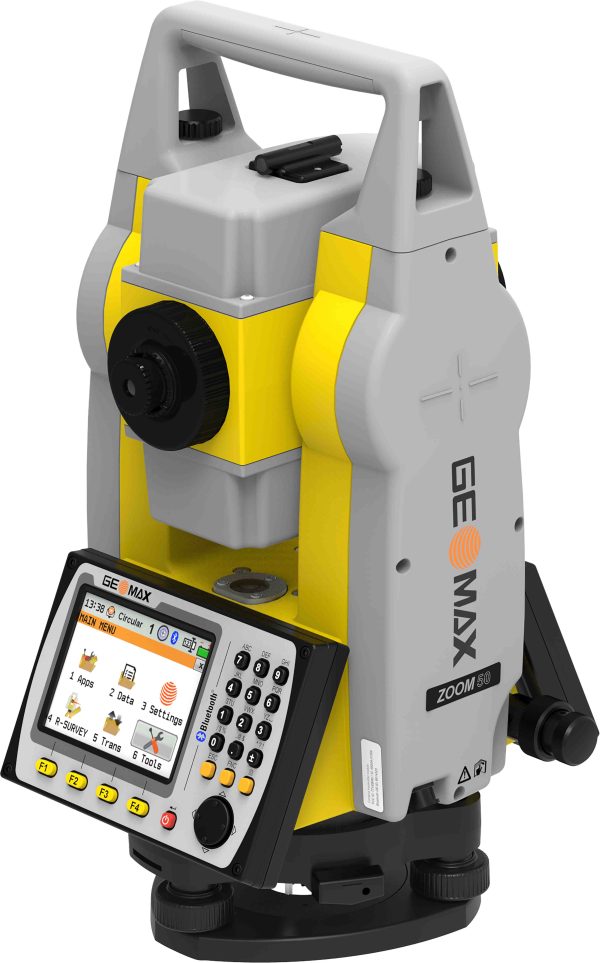

The Zoom50 manual total stations features an intelligent distance measurement engine designed for outstanding range, speed and highest accuracy - even under the tough conditions. The longer measurement range means fewer setups. The new “Powerlock″ protection mechanism prevents the use by unauthorized persons making and deters theft. In combination with the wider color touchscreen, built-in Bluetooth, USB memory stick support, and fully featured application package with advanced features such as Road 3D and Traversing makes the Zoom50 a highly capable total station.
Zoom50
SPECIFICATION
- Accuracy
1”, 2”, 5”
- Display resolution
1”
- Method
Absolute, continuous, diametrical
- Compensation
Quadruple axis
TELESCOPE
- Type
accXXess
- Magnification
30x
- NavLight™ Range
-
- NavLight™ Accuracy
-
DISTANCE MEASUREMENTS - PRISM
- Range
3500 m (std. prism) / 10,000 m
- Accuracy
2 mm + 2 ppm
- Typ. time (fast/standard)
1 / 2.4 sec
DISTANCE MEASUREMENTS - NON-PRISM
- Range
500 m / 1000 m
- Accuracy
2 mm + 2 ppm (< 500 m), 4 mm + 2 ppm (> 500 m)
- Footprint
8x 20 mm @ 50 m
INTERFACE
- Keyboard
Two full alphanumeric
- Display
Color & Touch, 3.5” Q-VGA 320 x 240 pixel with LED backlight, 10 lines
- Date recording
Internal memory, 50,000 points
- Bluetooth
yes
- Removable memory
USB stick
- Ports
Serial, USB and external power
SOFTWARE
- Operating System
Embedded CE
- Open for 3rd party SW
-
- Basic package
yes
- Advanced package
COGO, Ref. Arc, Road 3D, Traverse, PIN/PUK
PHYSICAL SPECIFICATIONS
- Weight
4.2 - 4.5 kg w/o battery and tribrach
- Operating temperature
-20 °C to 50 °C (optional Polar Version -30 °C to 50 °C)
- Protection class
IP55
POWER SUPPLY
- Type/Operating time
removable, 16 hours
PLUMMET
- Type
Laser point, adjustable brightness
