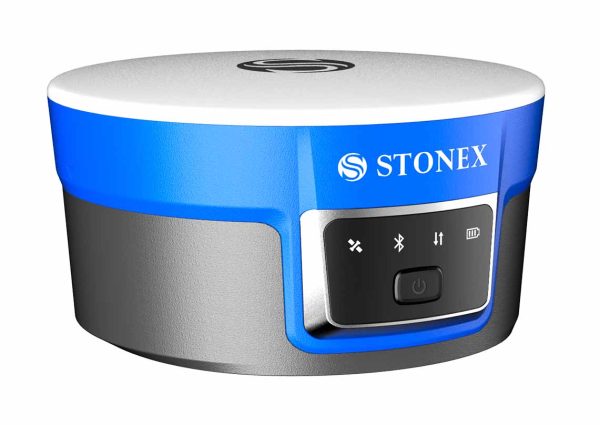

S999 GNSS Receiver

Previous product
Stonex 3D Bundle (XVS + X70Go) Original price was: €30,800.00.Current price is: €22,005.00. ex. VAT

6,500.00 ex. VAT

In Stock
Highlights:

S999, equipped with 1408 multi-constellation channels, guarantees precise and reliable positioning by supporting all GNSS signals, including GPS, GLONASS, Galileo, QZSS, IRNSS, and BeiDou. It features an integrated 4G modem and a 1-Watt UHF radio operating in the 410-470 MHz and 902.4-928 MHz frequency ranges, ensuring constant connectivity and an extended working range.

Category:
Description

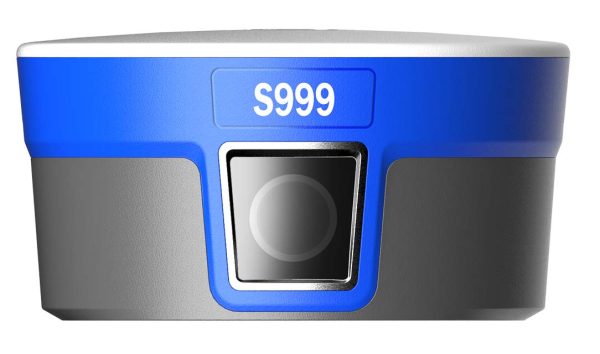

The advanced IMU technology enables tilted measurements of up to 60° with rapid initialization, enhancing field productivity by as much as 40%. The S999 receiver is also equipped with two cameras: one for stakeout and one for photogrammetric applications, expanding the system’s usage possibilities. Visual stake out The front camera simplifies point staking by clearly showing the surrounding area, helping you accurately identify the point of interest. As you get closer, it automatically switches to the lower camera for precise framing, ensuring reliable measurements. Cube-a’s interface uses visual aids to guide surveyors to the exact staking location. A graphical display indicates both the direction and distance to the point, adjusting as the operator approaches. Measuring inaccessible points The system allows you to record a video of the area you want to measure. The program extracts several photos that the operator can use toalign the points to be measured. Cube-a then immediately provides the calculated coordinates, which can be easily recorded. Measurements can be taken offline as well. Online point cloud and mesh The acquired video of an area can be exported and uploaded to photogrammetry software (Cube-3D) to generate a three-dimensional model (point cloud and mesh). Alternatively, it can be sent directly from Cube-a to the Stonex VScloud for semi-real-time data processing, resulting in a 3D model (point cloud and mesh). The survey can then be visualized and managed directly on the Android controller within Cube-a (v. 7).

S999 GNSS Receiver

SPECIFICATION

  • Satellite signals tracked
  • GPS: L1 C/A, L1C, L2P, L2C, L5

    GLONASS: L1, L2, L3

    BEIDOU: B11, B21, B31, B1C, B2a, B2b

    GALILEO: E1, E5a, E5b, E6

    QZSS: L1, L2, L5

    IRNSS: L5

    SBAS

  • PPP
  • B2b PPP, HAS

  • Channels
  • 1408

  • Position Rate
  • Up to 50Hz

  • Signal Reacquisition
  • < 1s

  • RTK Signal Initialization
  • < 5 s

  • Hot Start
  • Typically < 15 s

  • Initialization Reliability
  • > 99.9%

  • Internal Memory
  • 32 GB

  • Tilt Sensor
  • IMU ±60°

POSITIONING

  • Horizontal
  • 2.5 mm + 0.1 ppm RMS

  • Vertical
  • 3.5 mm + 0.4 ppm RMS

REAL TIME KINEMATIC (< 30 Km) - NETWORK RTK

  • Fixed RTK Horizontal
  • 8 mm + 1 ppm RMS

  • Fixed RTK Vertical
  • 15 mm + 1 ppm RMS

  • PPP Accuracy
  • < 20 cm RMS

  • SBAS Accuracy
  • < 60 cm RMS

INTEGRATED GNSS ANTENNA

  • High accuracy multi-constellation antenna, zero phase center, with internal multipath suppressive board

INTERNAL RADIO (optional)

  • Type
  • Tx - Rx 0.5W/2W

  • Frequency Range
  • 410-470 MHz

    902.4 – 928 MHz

  • Channel Spacing
  • 12.5 KHz / 25 KHz

  • Ranges
  • 3-4 Km in urban environment

    Up to 10 Km with optimal conditions

  • Band
  • LTE FDD:

    /B2/B3/B4/B5/B7/B8/B12/B13/B18/

    B19/B20/B25/B26/B28

    LTE TDD: B38/B39/B40/B41

    UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8

    Nano SIM card

    GSM: B2/B3/B5/B8

BELOW CAMERA

  • Resolution
  • 2 MP

  • Image frame
  • 30 frame/s

  • Field of view
  • 72°

FRONTAL CAMERA

  • Resolution
  • 2 MP

  • Image frame rate
  • 5 frame/s

  • Video frame rate
  • 30 frame/s

  • Field of view
  • 75°

COMMUNICATION

  • I/O Connectors
  • Type-C for charging and data transfer

  • Bluetooth
  • 2.1 + EDR, V5.0

  • Wi-Fi
  • 802.11 a/ac/b/g/n

  • Web UI
  • To upgrade the software, manage the status and settings, and download data. Smartphone, tablet, or other electronic device with Wi-Fi capability can be used.

  • Reference outputs
  • RTCM 3.x

  • Navigation outputs
  • NMEA 0183

POWER SUPPLY

  • Battery
  • Built-in battery, 3.6V, 13.6Ah, 48.96Wh, support for PD fast charge

  • Power
  • 12V DC

  • Working Time
  • Up to 10 hours

  • Charge Time
  • Typically 4 hours

PHYSICAL SPECIFICATION

  • Dimensions
  • Ø 139 mm x 74 mm

  • Weight
  • 1065 g

  • Operating Temperature
  • -40°C to 65°C (-40°F to 149°F)

  • Storage Temperature
  • -40°C to 80°C (-40°F to 176°F)

  • Waterproof/Dustproof
  • IP68

  • Shock Resistance
  • Designed to endure to a 1.5 m free drop with no damage

  • Humidity
  • 100% non-condensing
