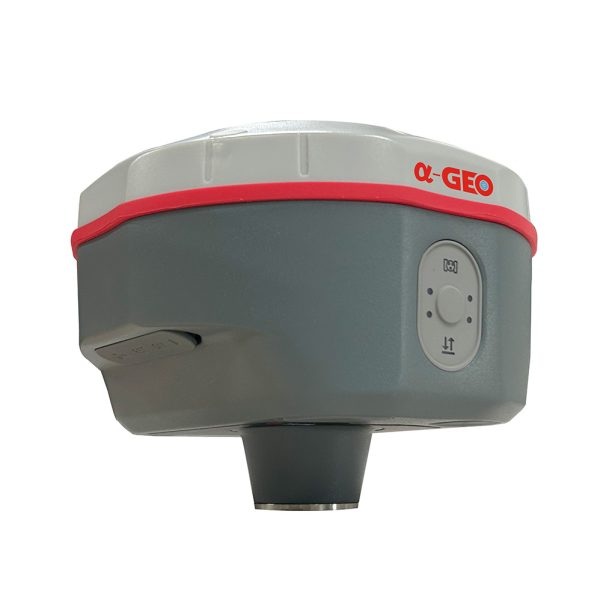

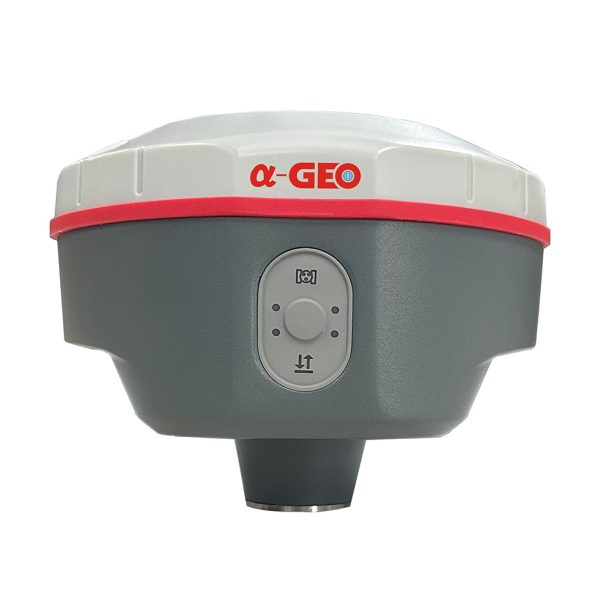

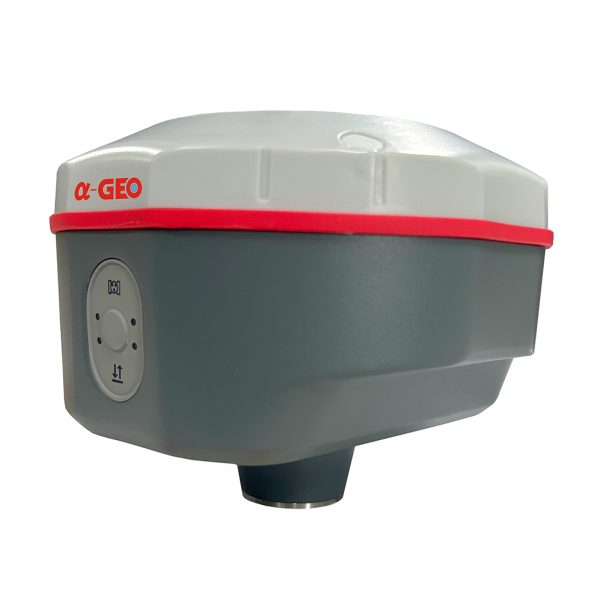

Matrix II Lite
SPECIFICATION
- Satellite signals tracked simultaneously
GPS: L1C/A, L1C, L2P(Y), L2C, L5
GLONASS: L1, L2,L3
BEIDOU: B11, B21, B31, B1C, B2a, B2b
GALILEO: EI/ESa/ESb/E6
QZSS: L 1 /L2/LS/L6
SBAS:WAAS, EGNOS, MSAS, GAGAN, SDCM
- Channels
1408 tracking Channels
- Cold start
<60 s
- Hot start
<15 s
- Positioning output rate
1Hz - 20Hz
- Signal Reacquisition
<1s
- RTK Initialization time
<5s
- Initialization Reliability
>99.99%
- Time accuracy
20 ns
Positioning
- Static GNSS surveying
Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
- RTK Surveying
Horizontal: ±(8mm + 1.0ppm)
Vertical: ±(15 mm + 1.0ppm)
PHYSYCAL
- Material
Magnesium alloy
- Dimensions
120mm*72mm (without bottom connector 20mm)
- Weight
0.76kg
- Operating temperature
-40°C to +75°C
- Storage temperature
-55°C to +85°C
- Protection IP
IP67 dust proof, protected from 30min immersion to depth of 1m
- Shock
Survive a 2m pole drop onto concrete
- Vibration
MIL-STD-810G
- Humidity
100%, condensing
ELECTRYCAL
- Power
9~24 V DC external power input on 5 pin LEMO port
- Support USB Type-C fast charging
- Internal 7000mAh-7.4V lithium-ion battery
- Battery Life
Network Mode: >24h
Radio Reception: >18h
Radio Transmission: >8h
I/O interface
- LEMO port (5pin)
- USB Type-C port
Data download / Charging
Radio modem
- Internal radio
TX/RX internal module
- internal radio frenquency
410-470 MHZ
- Communication protocols
Alphatalk1 5, Transparent transmission /TT 450S/SOUTH
Bluetooth
- Fully integrated Bluetooth V4.0, range 50m
Data format
- Differential data
RTCM2.X, RTCM3.X
- GPS output data format
NMEA 0183s RTK, Binary code
Storage
- 8GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval
System integration
- OS system
Intelligent LINUX operating system
- Supported controllers
All android devices with supported software
- Key
one button
- Indicator
Power indicator, data link indicator, satellite indicator, Bluetooth indicator
