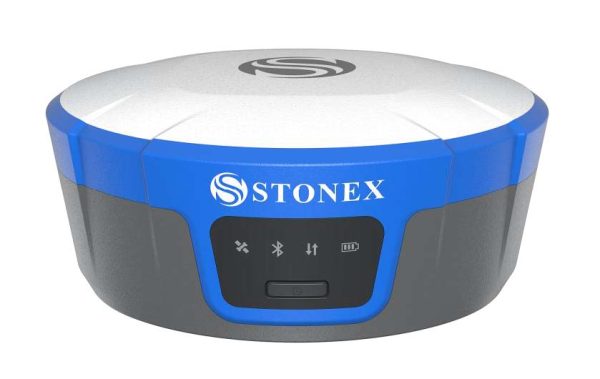

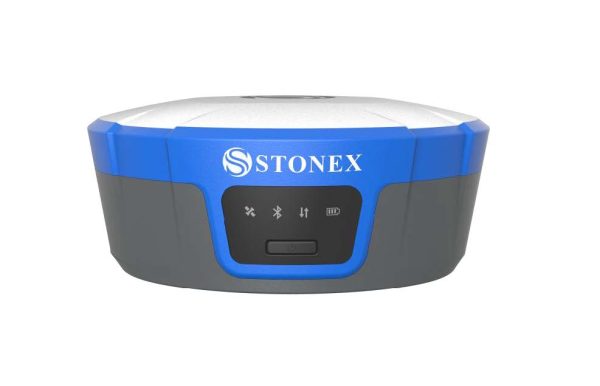

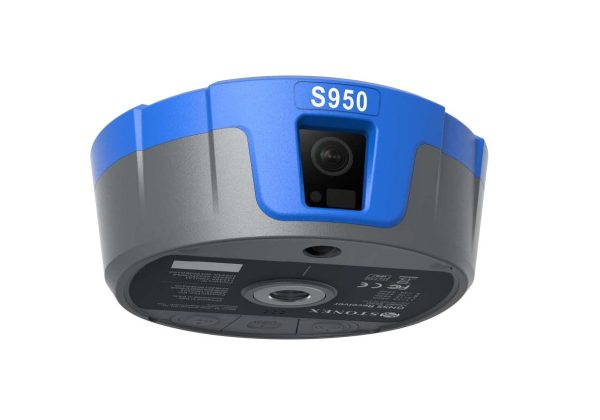

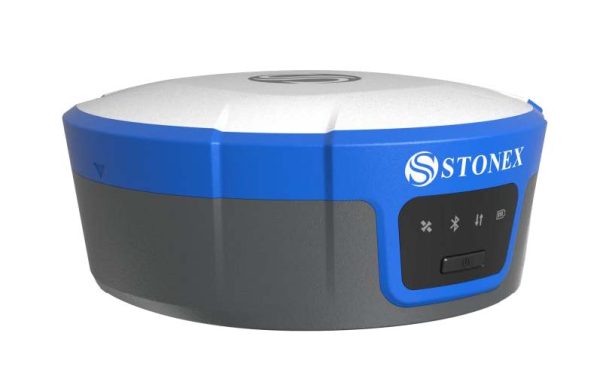

S950 GNSS Receiver

SPECIFICATION

• Satellite signals tracked

• GPS: L1 C/A, L2P, L2C, LS

  GLONASS: L1, L2, L3

  BEIDOU: B11, B21, B31, B1C, B2a, B2b

  GALILEO: E1, E5a, E5b, E6

  QZSS: L1, L2, LS, L6

  IRNSS: LS

  SBAS

• PPP

• B2b PPP, HAS

• Channels

• 1408

• Position Rate

• Up to 50Hz

• Signal Reacquisition

• < 1s

• RTK Signal Initialization

• < 5 s

• Hot Start

• Typically < 15 s

• Initialization Reliability

• > 99.9%

• Internal Memory

• 64 GB

• IMU rate

• 200 MHz

• Tilt range

• IMU ±60°

• RTK+ IMU

• 5 mm + 0.3 mm/°

POSITIONING

• Horizontal

• 2.5 mm + 0.5 ppm RMS

• Vertical

• 3.5 mm + 0.5 ppm RMS

REAL TIME KINEMATIC (< 30 Km) - NETWORK RTK

• Fixed RTK Horizontal

• 8 mm + 1 ppm RMS

• Fixed RTK Vertical

• 15 mm + 1 ppm RMS

• PPP Accuracy

• < 20 cm RMS

• SBAS Accuracy

• < 60 cm RMS

INTEGRATED GNSS ANTENNA

• High accuracy multi-constellation antenna, zero phase center, with internal multipath suppressive board

INTERNAL RADIO (optional)

• Type

• Tx - Rx 2W

• Frequency Range

• 410-470 MHz

• Channel Spacing

• 12.5 KHz / 25 KHz

• Ranges

• 3-4 Km in urban environment

  Up to 10 Km with optimal conditions

• Band

• LTE FDD:

  /B2/B3/B4/B5/B7/B8/B12/B13/B18/

  B19/B20/B25/B26/B28

  LTE TDD: B38/B39/B40/B41

  UMTS: B1/B2/B4/B5/B6/B8/B19

  GSM: B2/B3/B5/B8

  Nano SIM card

BELOW CAMERA

• Resolution

• 5 MP

• Image frame

• 20 frame/s

• Field of view

• 76°

FRONTAL CAMERA

• Resolution

• 2 MP

• Image frame rate

• 20 frame/s

• Field of view

• 52°

LASER

• Color

• Green

• Precision

• 2 mm

• RTK + Laser accuracy

• 2.5 cm-5 m/ 4 cm -10 m

• Range

• 30 m

COMMUNICATION

• I/O Connectors

• Type-C for charging and data transfer

• Bluetooth

• 2.1 + EDR. V5.2

• Wi-Fi

• 802.11 a/ac/b/g/n

• Web UI

• To upgrade the software, manage the status and settings, and download data. Smartphone, tablet, or other electronic device with Wi-Fi capability can be used.

• Reference outputs

• RTCM 3.x

• Navigation outputs

• NMEA 0183

POWER SUPPLY

• Battery

• Built-in battery, 7000 mAh

• Power

• 12V DC

• Working Time

• Up to 10 hours

• Charge Time

• Typically 4 hours

PHYSICAL SPECIFICATION

• Dimensions

• Ø142 x 59 mm

• Weight

• 810 g

• Operating Temperature

• -40°C to 65°C (-40°F to 149°F)

• Storage Temperature

• -40°C to 80°C (-40°F to 176°F)

• Waterproof/Dustproof

• IP67

• Shock Resistance

• Designed to endure to a 2 m pole drop on hardwood floor with no damage

• Humidity

• 100% non-condensing
